MDC-50V

Category:Ceiling Sensors
Model: MDC-50V

Choose a Color:

Product Description

The MDC-50V 360° Dual-Technology Occupancy Sensor combines advanced passive infrared (PIR) and ultrasonic technologies into one unit. The combined technologies help to avoid false triggering.Selectable operating modes allow the sensor to turn a load on, and hold it on as long as either or both technologies detect occupancy. After no movement is detected for the selected time delay, the lightsswitch off.

Electrical Specifications
. Voltage: 120/277VAC, 50/60Hz

Load Requirements:
. Incandescent:800W-120VAC, 50/60Hz
. Fluorescent:800VA-120VAC,1600VA-277VAC, 50/60Hz
. Motor: 1/4HP-120VAC, 50/60Hz

Control Specifications
. Adjustment Time Delay: 5 Sec. to 30 Min.
. Test Mode: delay time is 5 sec. lasts 30 Min. at each time by setting
. PIR Adjustment: 50% or 100% (DIP switch 1)
. Ultrasonic Adjustment :Minimum to Maximum (trim pot 1)
. Light Level Adjustment: 100 Lux --daylight (trim pot 2)

Mechanical Specifications
. PIR Coverage: 1600 sq. ft.
. Ultrasonic Coverage: 1000 sq. ft.

COVERAGE PATTERN

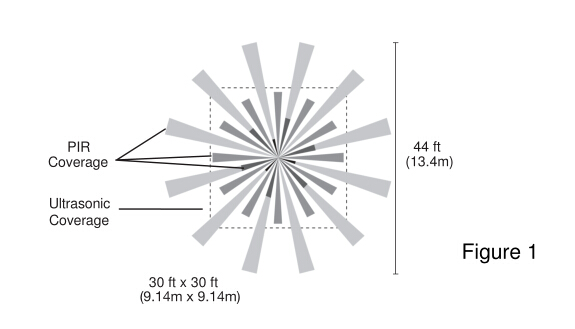

The MDC-50V provides a 360° coverage pattern, up to 1200 square feet. The coverage shown represents walking motion at a mounting height of 8 feet(See Figure 1 ). For building spaces with lower levels of activity or with obstacles and barriers, coverage size may decrease
Environmental Specifications
. Operating Temperature: 32°to 131°F (0°to 55°C)

Standards and Certifications
. UL/CUL Listed
. Code Compliance: California Title 24
