Product Description
The MDC-52V 360 ° Dual-technology occupancy sensor combines advanced passive infrared (PIR) and ultrasonic technologies into one unit. The combined technologies help to avoid false triggering, Selectable operating modes allow the sensor to turn a load on, and hold it on as long as either or both technologies detects occupancy. After no movement is detected for the selected time delay,  the lights are switched off.

Load Requirements:
. Incandescent:800W-120VAC, 60HZ
. Fluorescent:800VA-120VAC / 1600VA-277VAC, 60HZ
. Motor: 1/4HP-120VAC, 60Hz

Control Specifications
. Adjustable Light Level:100 Lux-daylight
. Adjustable Time Delay:5 sec.-30min.

. PIR Adjustment：50% or 100% (DIP switch 1)

. Ultrasonic Adjustment: Minimum to Maximum (trimport 1)

. PIR Coverage:1600 sq.ft

. Ultrasoic Coverage: 1000 sq.ft

. Lead Power Cable: 4 feet

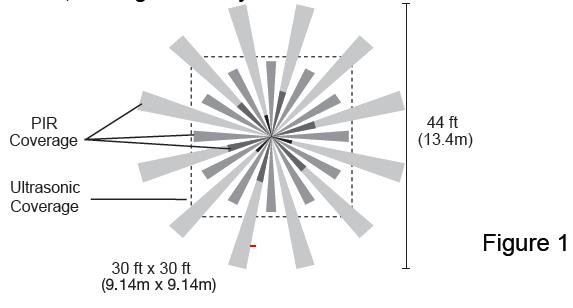

COVERAGE PATTERN
The MDC-52V provides a 360° coverage pattern. The coverage shown represents walking motion at mounting height of 9 feet. For building spaces with lower levels of activity or with obstacles and barriers, coverage size may decrease
Environmental Specifications
. Operating Temperature: 32°to 131°F (0°to 55°C)

Standards and Certifications
. UL/CUL Listed
. Code Compliance: California Title 24

Rebates & Incentives USA
There are various rebates and incentives that promote energy efficient lighting systems. Incentives to purchase and install energy efficient products can come from: 1. Local and state utilities 2. State energy efficiency programs 3. EPAct tax incentives 4. Federal stimulus monies that focus on energy efficiency
