Product Description
The MPC-52V 360 °passive infrared (PIR) occupancy sensors turn lighting systems on and off based on occupancy and ambient light levels. The light level feature keeps lights from turning on if the ambient light level is sufficient.
The sensors can be configured to turn lighting on, and hold it on as long as the sensor detects occupancy. After no movement is detected for a specified time the lights are switched off
Load Requirements:
. Incandescent:800W-120VAC, 60HZ
. Fluorescent:800VA-120VAC / 1200VA-277VAC, 60HZ
. Motor: 1/4HP-120VAC, 60Hz
Control Specifications
. Adjustable Light Level:10FC—150FC
. Adjustable Time Delay:15 sec.-30min.
. Sensitivity Adjustment:50% or 100% (DIP switch)
. Coverage:Up to 800 ft
COVERAGE PATTERN

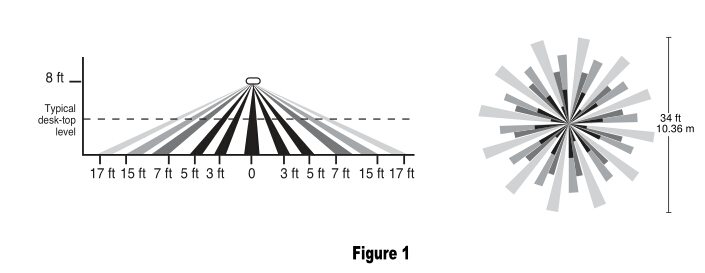

The MPC-52V provides a 360° coverage pattern, up to 800 square feet. (See Figure 1 ).For building spaces with lower levels of activity or with obstacles and barriers, coverage size may decrease
Environmental Specifications
. Operating Temperature: 32°to 131°F (0°to 55°C)
Standards and Certifications
. UL/CUL Listed
. Code Compliance: California Title 24
Rebates & Incentives USA
There are various rebates and incentives that promote energy efficient lighting systems. Incentives to purchase and install energy efficient products can come from: 1. Local and state utilities 2. State energy efficiency programs 3. EPAct tax incentives 4. Federal stimulus monies that focus on energy efficiency
