Product Description
This Multi-Technology Wall Switch Sensor combine advanced passive infrared (PIR) and ultrasonic technologies into one unit. The combined technologies help to avoid false triggering.Selectable operating modes allow the sensor to turn a load on, and hold it on as long as either or both technologies detect occupancy.After no movement is detected for the selected time delay, the lights switch off.A "walk-through" mode can turn lights off after only 3 minutes, if no activity is detected after 30 seconds following an occupancy detection.This sensor also contains a light level sensor. If adequate daylight is present,the sensor,holds the load OFF until light levels drop, even if the area is occupied.

Electrical Specifications
. Voltage: 120/277VAC,50/60Hz, Single Pole

Load Requirements:
. Incandescent:800W-120VAC,50/60Hz
. Fluorescent:800VA-120VAC,1600VA-277VAC,50/60Hz
. Motor: 1/4HP-120VAC,50/60Hz

Control Specifications
. Adjustable Light Level:100 Lux --daylight(trimpot)
. Adjustable Time Delay:15Sec to 30Mins
. Walk-Through Mode:3 minutes if no activity after 30 sec.
. Test Mode:15 sec. at initial power up or DIP switch reset
. PIR Adjustment:High or Low (DIP switch)
. Ultrasonic Adjustment:Minimum to Maximum (trimpot)

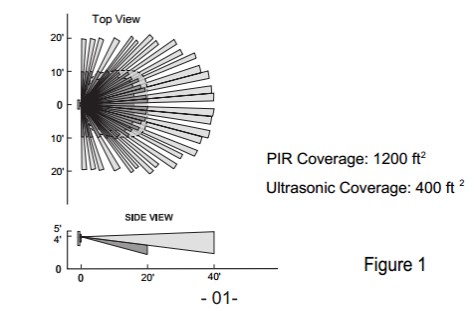

Coverage Area

Environmental Specifications
. Operating Temperature: 32°to 131°F (0°to 55°C)

Standards and Certifications
. UL/CUL Listed
. Code Compliance: California Title 24
