Product Description
The passive infrared sensors work by detecting the difference between heat emitted from the human body in motion and the background space.The sensor switch can turn a load on and hold it as long as the sensor detects occupancy. After no motion is detected for the set time delay, the load turned off automatically.The sensor switch has one SCR ( equal to single pole switch), also includes Ambient Light Level Sensor.
Electrical Specifications
. Voltage: 120VAC, 60Hz
Load Requirements:
. Incandescent:Min.25W to Max.500W
. Motor: 1/8HP
Control Specifications
. SCR contained, not suitable for use with electronic ballast
. Adjustable Light Level:30 Lux--Daylight
. Adjustable Time Delay:15Sec to 30Mins
Coverage Area

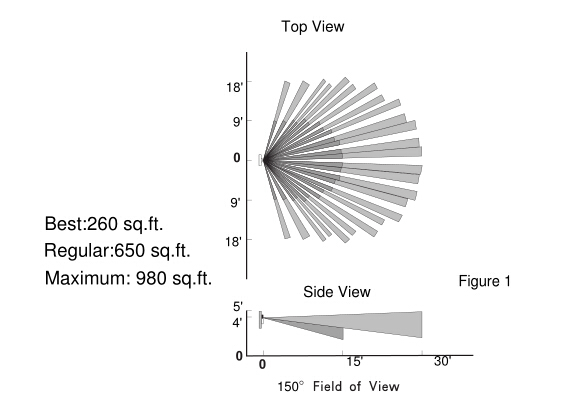

The coverage range of the sensor switch is specified and illustrated in Figure 1. Large objects and some transparent barriers like glass windows will obstruct the sensors' view and prevent detection, causing the light to turn off eventhough someone is still in the detection area.
Environmental Specifications
. Operating Temperature: 32°to 131°F (0°to 55°C)
Standards and Certifications
. UL/CUL Listed
